Oceansouth Whitewater 3 Bow Bimini Top

Heavy-duty bimini top

A premium quality bimini specially designed to suit open boats, runabouts, ski boats and half cabins, the
Oceansouth Whitewater 3 Bow Bimini Top features
easy to assemble snap-lock framing and built to stand up to harsh
conditions. Designed to provide a comfortable shaded area on your
boat.

Oceansouth Whitewater 3 Bow Bimini Top
Features:

• Suitable for Open Boats, Runabouts, Ski Boats & Half Cabins
• 25mm Anodised Aluminium double-wall aluminium snap-lock frame
• High Tech Polyester ATLAS Canvas 310 g/m2 (7-year life expectancy)
• UV & weather resistant, with colour fastness
• Marine grade nylon fittings, stainless steel 316 fasteners
• Max. Speed Rating 45 knots

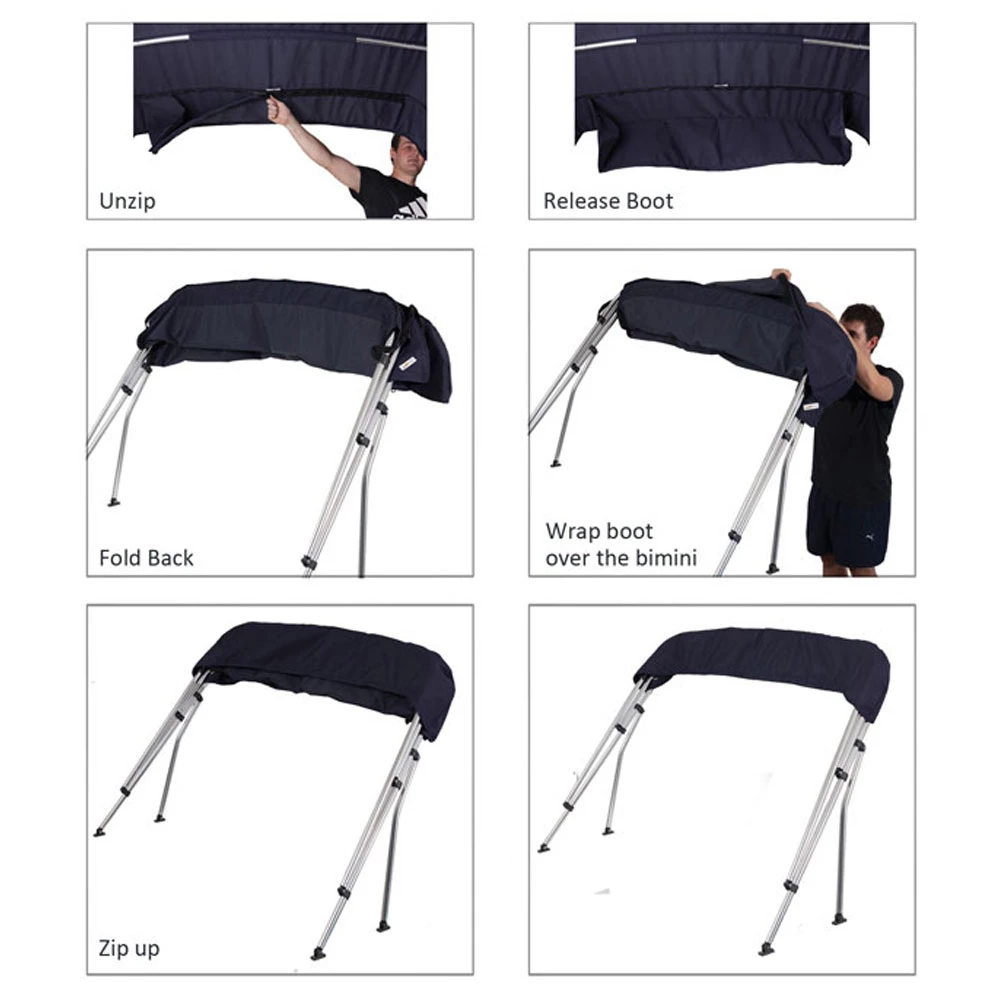

• Supplied with Support Poles & Integrated Storage Boot

Canvas Features:

• Weight: 310 g/m²
• Material: 100% High Tech Polyester
• Water Column: ≥ 150 mbar (1500 mm)
• Light & Weather Fastness: Note 6-7
• Tensile Strength: ≈ 2200 N³ | 1400 N²
• Elongation: ≈ 40 %^{1 | 30 %2}
• Colour Fastness to rubbing: Note 4-5³ | Note 44
• Chlorine Resistant: Note 4-5
• Water Repellency: Note 100
• Oil Repellency: Note 4
• Coating: Polyurethan [PU]
• UV Protection Factor: UPF 50+ (measured value > UPF 80)

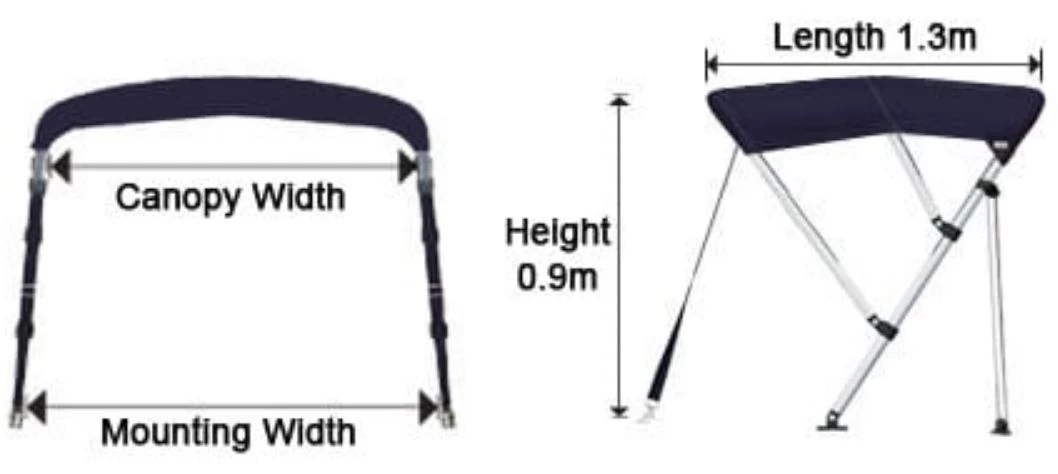

• Length: 1.3mm
• Height: 0.9m – 1.2m

Oceansouth Whitewater 3 Bow Bimini Top
Specifications:

	CANOPY WIDTH	MOUNTING WIDTH	ORDER CODE
	1.2m	1.3m – 1.5m	MA 090-0
	1.4m	1.5m – 1.7m	MA 090-1
	1.6m	1.7m – 1.9m	MA 090-2
	1.8m	1.9m – 2.1m	MA 090-3
	2.0m	2.1m – 2.3m	MA 090-4

 SUITABLE FOR

Open Boats

Runabouts

Half Cabins

Ski Boats
