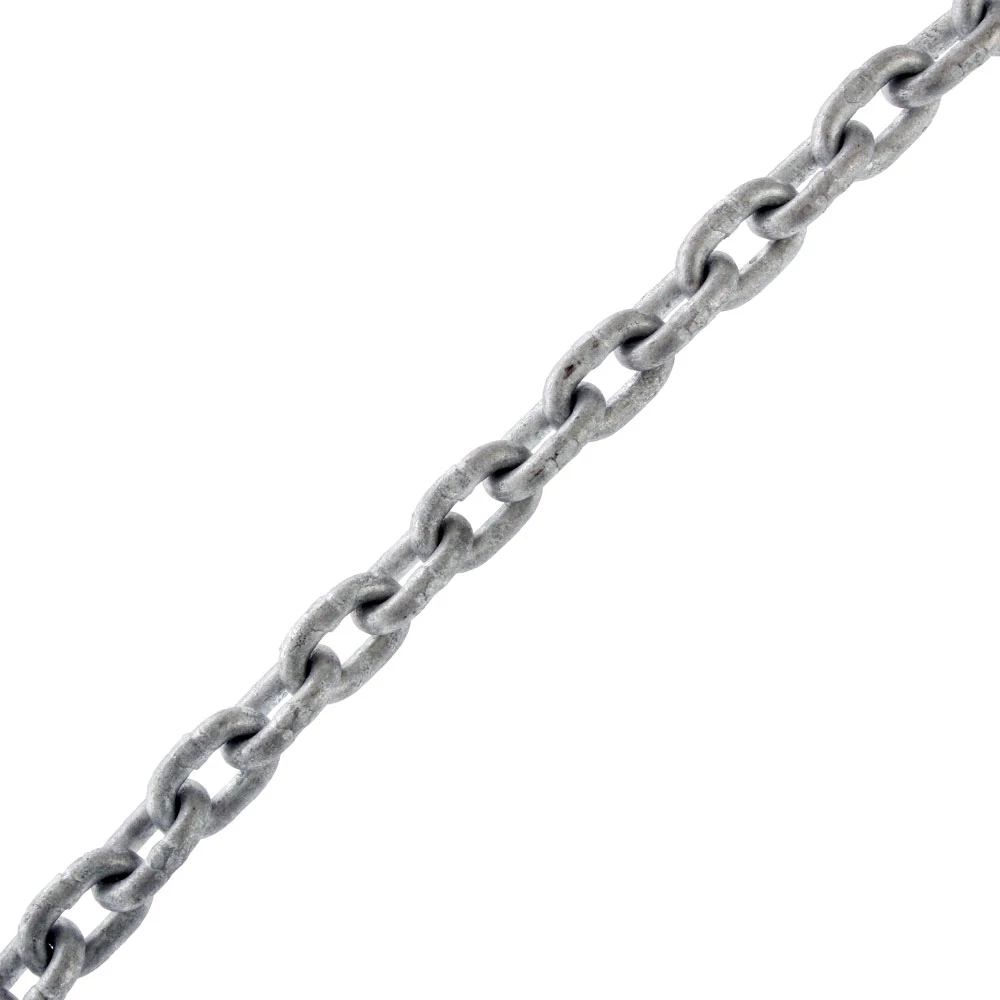

Oceansouth DIN766 Chain For Winch Per Metre

Quality and strength

The mild steel hot dipped galvanised Oceansouth DIN766
Chain is manufactured on automatic chain making machines
with flash butt welded joints. All sizes of chain are calibrated
during manufacture, then proof load tested at the end of the
process.

Note: This product is sold per metre
and can be cut to your required length. Just indicate the number of
metres in the Qty box (e.g. 3 metres = qty: 3). Bulk item shipping
rates (see
table here) only apply if your total ordered rope lengths reach
over 20kg. Bulk items are shippable to New Zealand only. Product is non-refundable or exchangeable as the lengths cannot be attached again.

Oceansouth DIN766 Chain Features:

• Mild Steel Hot Dipped Galvanised Welded Chain
• Compatible with Windlasses
• Flash butt welded joints
• Calibrated
• DIN766
• Length: Sold per metre

Oceansouth DIN766 Chain Specifications:

Size (mm)	Inside Length (mm)	Inside Width (mm)	Outside Width (mm)	Length per 11 links (mm)	Weight per Metre (kg)
6	18.5	7.2	20.2	203.5	0.8
7	22	8.4	23.8	242	1.1
8	24	9.6	27.2	264	1.4
9	27	10.8	30.6	297	1.8
10	28	12	34	308	2.2
11	31	13.2	37.4	341	2.7
12	36	14.4	40.8	396	3.1
13	36	15.6	44.2	396	3.8
14	41	16.8	47.6	451	4.4
