Oceansouth 4 Bow Stainless Steel Cruiser Bimini

Premium quality stainless steel

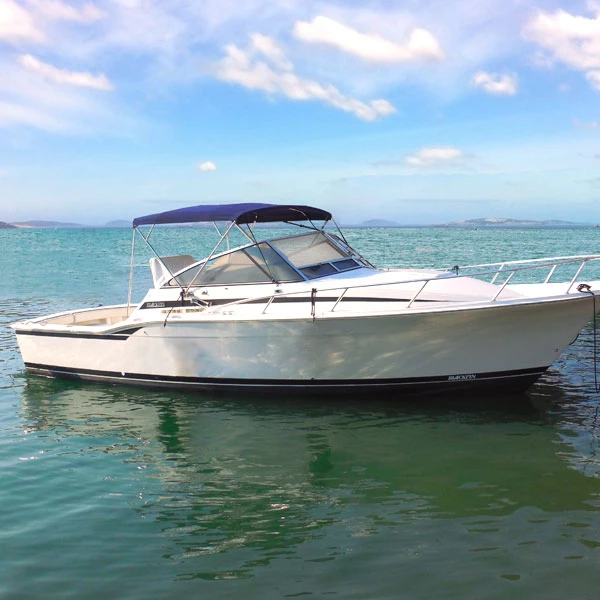

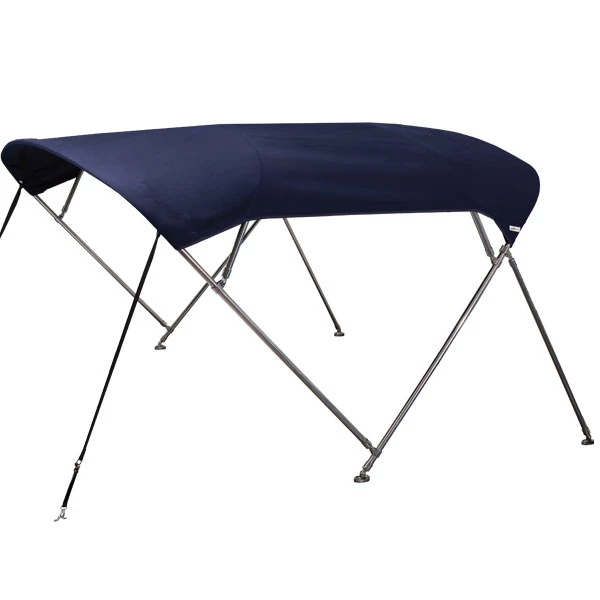

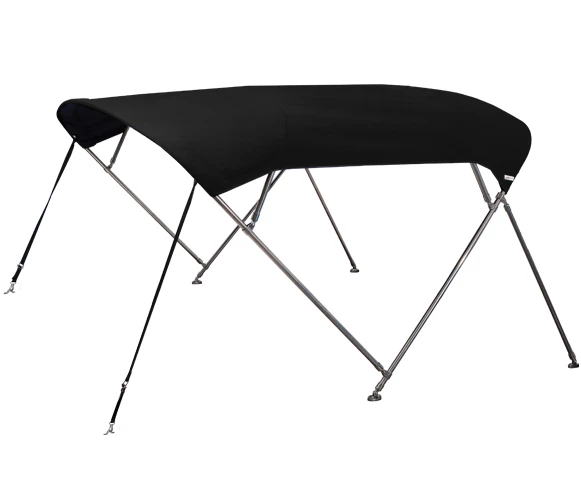

The Oceansouth 4 Bow Stainless Steel Cruiser
Bimini is a premium quality stainless steel framed bimini
and is designed to suit larger Cruiser boats. The
Oceansouth 4 Bow Stainless Steel Cruiser Bimini
features 316 1” stainless steel components and Sunbrella canvas
top. It features integrated storage boot and the support poles are
included, with top stitched double seams sewn with UV-bonded thread
for maximum strength.

Oceansouth 4 Bow Stainless Steel Cruiser Bimini
Features:

• Integrated storage boot and support poles included
• 100% Dope dyed polyester Atlas canvas Golden Range
• Top-stitched double seams, sewn with UV bonded thread for
  maximum strength
• Size #10 Delrin zipper for easy removal of fabric top for
  winter storage
• Height 1.35m – 1.55
• Length 2.2m – 2.5m

Oceansouth 4 Bow Stainless Steel Cruiser Bimini
Specifications:

Code	Height	Length	Canopy Width	Mounting Width
MA 066-1	1.35m	2.2m	1.95m	1.8-2.1m
MA 066-2	1.35m	2.2m	2.25m	2.1m – 2.4m
MA 066-3	1.55m	2.5m	2.55m	2.4m – 2.7m
MA 066-4	1.55m	2.5m	2.85m	2.7m – 3.0m
MA 066-5	1.55m	2.5m	3.15m	3.0m – 3.3m
